What is a Diagnostic Report

A car diagnostic report is a detailed document generated after a vehicle undergoes a diagnostic scan using an On-Board Diagnostics (OBD) system. This system is built into modern cars to monitor their performance and detect any issues within the engine, transmission, exhaust system, and other vital components. The diagnostic report helps mechanics or vehicle owners identify problems with the car's systems by analyzing data from various sensors and components in real-time.

Key Features of a Car Diagnostic Report:

  1. Trouble Codes (DTCs): The report lists any trouble codes that indicate faults within the vehicle’s systems. These codes are generated when a sensor detects an issue, and they help pinpoint which part of the car is malfunctioning. The most common codes are P-codes (powertrain issues, such as engine or transmission), B-codes (body-related issues, like airbags or seatbelt systems), C-codes (chassis-related issues), and U-codes (network communication errors).

  2. Vehicle Information: The report typically includes basic details about the car, such as make, model, year, engine type, and the Vehicle Identification Number (VIN).

  3. Freeze Frame Data: This captures the vehicle’s condition at the moment when the issue was detected, such as speed, temperature, fuel pressure, etc. It can be useful for a mechanic to understand the exact circumstances of the problem.

  4. Live Data: Provides real-time data from various sensors in the vehicle, including:

    • Engine speed (RPM)
    • Fuel trim levels (how the engine is adjusting fuel for combustion)
    • Oxygen sensor data
    • Throttle position, and more.

  5. Sensor and Component Tests: The report may include tests of individual components (e.g., oxygen sensors, MAF sensors, or fuel injectors) to verify if they are functioning correctly.

  6. Emissions System Check: Ensures that the vehicle’s emission control systems are working properly, which is crucial for passing emissions tests and ensuring the vehicle is environmentally friendly.

  7. Battery and Charging System Status: The report may include a check on the health of the car’s battery and charging system, identifying any issues with voltage, alternator performance, or battery life.

Why is a Car Diagnostic Report Important?

  • Troubleshooting: It helps in identifying why a car is performing poorly or malfunctioning, which makes the repair process more efficient.
  • Prevention: It can catch potential issues before they become major, expensive problems.
  • Emissions Compliance: It ensures that the car’s emission systems are functioning properly and in compliance with regulations.
  • Maintenance: It aids in maintaining the vehicle by keeping track of system performance over time.

A diagnostic report is typically generated using a device or tool that plugs into the car’s OBD-II port. Car owners can use these reports to understand their vehicle's issues or share them with a mechanic for a more thorough analysis and repair.

When a Diagnostic Report is needed

You should consider getting a car diagnostic report in several situations, whether you're experiencing specific symptoms or simply for routine maintenance. Here are the key times when you should get a diagnostic report:

1. When the Check Engine Light (CEL) Comes On

  • This is the most common reason to run a diagnostic scan. The Check Engine Light (also called the Malfunction Indicator Light or MIL) comes on when the car's computer detects a problem. A diagnostic report will help identify the specific issue and whether it's a minor or major concern.

2. If Your Car Is Experiencing Poor Performance

  • Symptoms like sluggish acceleration, rough idling, stalling, or poor fuel efficiency can indicate problems with the engine, sensors, or fuel system. A diagnostic scan can pinpoint the cause of these performance issues.

3. When the Car Feels Unusual or Makes Strange Noises

  • If your car starts making strange noises like knocking, whining, or grinding sounds, a diagnostic report may help identify underlying issues, such as problems with the engine, transmission, or exhaust system.

4. Before Buying a Used Car

  • If you're considering purchasing a used car, running a diagnostic scan can help you uncover potential hidden problems. A report may reveal issues like sensor malfunctions, emission system problems, or faults that aren't immediately apparent from a visual inspection.

5. When You Notice Changes in Fuel Efficiency

  • A sudden drop in fuel efficiency can be caused by various factors, such as faulty sensors, clogged filters, or issues with the engine’s fuel system. A diagnostic scan will help you identify the root cause.

6. During Routine Maintenance or After Major Repairs

  • Even if you’re not experiencing any noticeable issues, getting a diagnostic report during regular maintenance (e.g., oil changes, tire rotations) or after major repairs ensures that everything is functioning correctly and that no new issues have developed.

7. When You Experience Electrical or Communication Issues

  • If your car has issues with electrical components (e.g., malfunctioning lights, faulty air conditioning, or problems with infotainment), a diagnostic scan can detect problems with wiring, sensors, or communication networks within the vehicle.

8. When Preparing for Emissions Testing

  • Some regions require cars to pass an emissions test as part of vehicle registration. A diagnostic report can check the health of your car’s emission control systems before you go for the test, helping you avoid failure due to problems like a faulty catalytic converter or oxygen sensor.

9. When You’re Experiencing Transmission Issues

  • If the transmission feels jerky, makes strange noises, or shifts gears erratically, a diagnostic report can help pinpoint issues like transmission fluid leaks or problems with sensors and solenoids.

10. When You’ve Had an Accident or Significant Impact

  • After a minor or major collision, it's a good idea to run a diagnostic scan to check for any hidden issues, such as airbag system faults or other electronic malfunctions caused by impact.

11. If You’re Not Sure About an Issue

  • If you're noticing symptoms but aren't sure whether they are serious (or if they’re just a normal part of driving), a diagnostic report can provide clarity and help you make an informed decision about whether to seek repairs or just monitor the situation.

12. If the Car Fails to Start or Has Starting Issues

  • Starting issues can arise due to problems with the battery, ignition system, or fuel delivery system. A diagnostic scan can help identify these issues quickly.

How Often Should You Do It?

For most car owners, a diagnostic scan is typically run when symptoms arise. However, if your vehicle is older or has high mileage, you may want to run a diagnostic report periodically (e.g., once every 6 to 12 months) as a preventive measure. This helps catch issues before they become major problems.

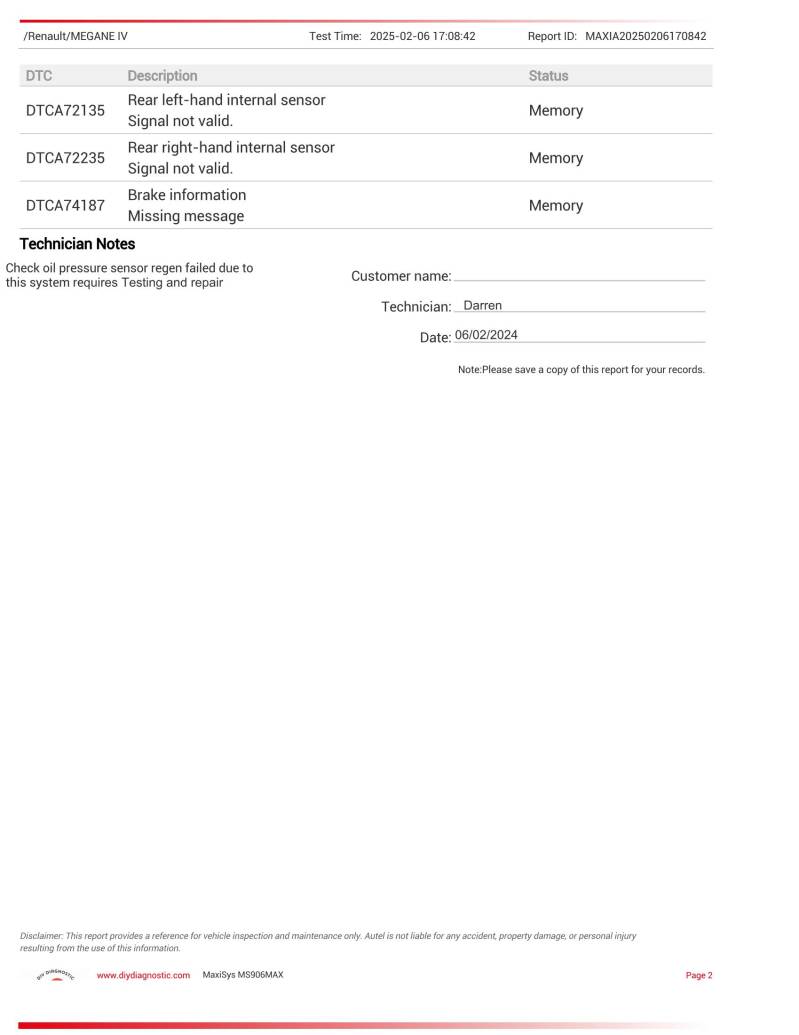

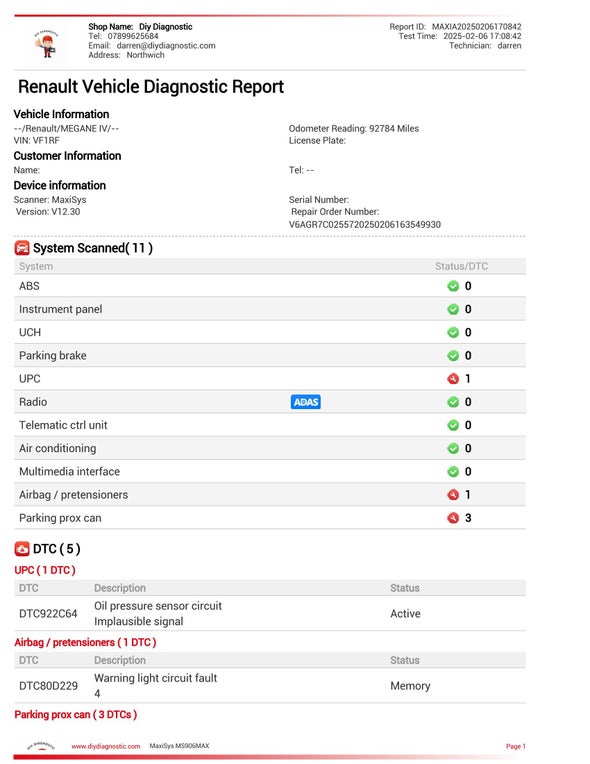

Example Diagnostic Report
